Engineering a Healthcare Interoperability & Data Transformation Engine
See how a configurable interoperability layer can receive healthcare data from heterogeneous systems, validate and normalize messages, map them into standards-based structures, validate FHIR profiles, and reliably deliver data to downstream applications.
6
CORE MODULES
12
PIPELINE STAGES
FHIR R4
STANDARD
Connector framework
BUILTProcessing pipeline
BUILTMapping & transformation
BUILTFHIR validation
BUILTDelivery & operations
BUILTUse case
Healthcare data exchange & transformation
Primary users
Integration teams, architects & HealthTech engineers
Inputs
HL7, FHIR, APIs, webhooks, SFTP, DB, queues
Core engine
Validate → Normalize → Map → Validate → Deliver
Standards
HL7 v2, FHIR R4, OAuth 2.0
Demo
Working demonstration available
The Challenge
The Healthcare Interoperability Problem
Healthcare systems produce data in dozens of variations — HL7 v2 messages with site-specific segment variations, non-standard delimiters, and non-conformant date formats; proprietary REST APIs; webhook payloads; and FHIR resources that don't conform to target implementation guides. Making this data usable downstream requires more than just connecting endpoints — it requires an end-to-end transformation pipeline that validates, normalizes, maps, and delivers data reliably.
The engineering challenge isn't moving data — it's transforming heterogeneous, non-standard healthcare messages into validated, standards-conformant structures that downstream systems can actually consume without failing.
What Peerbits Engineered
A configurable healthcare interoperability engine
Peerbits has engineered the core building blocks of a healthcare data transformation engine — called InteropX internally — and can demonstrate them live.
Connector Framework
Multiple inbound and outbound transport patterns — FHIR APIs, HL7, REST APIs, webhooks, SFTP, databases, and message queues — that manage connection and authentication and pass incoming data into the processing pipeline.
Processing Pipeline
A structured message lifecycle: receive, validate, normalize, map, validate against FHIR profiles, buffer temporarily, and publish for delivery, with audit events captured at each stage.
Mapping & Transformation
Configurable field and resource-level transformations, with standard templates that can stay immutable while tenants create their own customized copies.
Terminology Layer
Code lookup, value-set browsing, and concept mapping designed for compatibility with LOINC, SNOMED CT, ICD-10, RxNorm, CPT, and UCUM.
FHIR Validation
Resource structure, required elements, cardinality, profile conformance, and must-support checks applied before data moves downstream.
Delivery & Operations
Reliable delivery to destination systems with retry policies, delivery tracking, response monitoring, and full message traceability.
Pipeline Architecture
End-to-End Transformation Pipeline
This is the core of InteropX: a single, event-driven message lifecycle that any connected source system passes through on its way to a destination system.
Source
HL7 / FHIR / API
Connector
Transport layer
Auth
Authentication
Receive
Accept payload
Validate
Structure check
Normalize
Internal format
Map
FHIR transform
FHIR Validate
Profile check
Temp Buffer
Reliable delivery
Deliver
Retry + track
Destination
FHIR / API / DB
Monitor
Audit + logs
Source → Connector → Auth → Receive → Validate → Normalize → Map → FHIR Validate → Temporary Buffer → Deliver → Destination → Monitor
Connector / Auth
Establishes the connection to the source system and authenticates it before any message is accepted.
Receive
Accepts the incoming message or payload into the processing pipeline.
Validate
Checks the incoming message against structural and business rules before further processing.
Normalize
Converts the source format into a consistent internal representation.
Map
Applies configured field and resource mappings toward a FHIR-based structure.
FHIR Validate
Checks the mapped resource against applicable FHIR profiles and required elements.
Temporary Buffer
Holds processed data briefly to support reliable, resumable delivery.
Deliver
Sends the transformed data to the configured destination system, with retry handling on failure.
Monitor
Records delivery status, errors, and audit events for the full transaction.
Transport Patterns
Connect Once, Process Consistently
The same validation, mapping, and FHIR-conformance pipeline applies regardless of which source or destination pattern is in use.
Sources / Inputs
FHIR API
HL7 feed
REST API
Webhook
SFTP
Database
Message queue
Destinations / Outputs
EHR system
FHIR server / repository
Application database
REST endpoint
Webhook target
Cloud storage
Downstream message queue
Mapping Engine
Mapping & Transformation
Data arriving from legacy systems rarely matches the format required downstream. InteropX's mapping layer converts incoming structures into standard FHIR resources.
Standard mappings
Built-in templates for common patterns (HL7 PID → FHIR Patient, HL7 OBX → FHIR Observation, etc.).
Tenant isolation
Standard templates remain immutable; tenants create and maintain their own customized copies.
Conditional mapping
Field transformations can depend on values elsewhere in the message.
Validation before deliver
Mapped resources are validated before they move downstream.
Production Integration Note: Not every target EHR or destination system supports identical workflows; production integration depends on the target system, its API capabilities, interface requirements, the authorization model, and workflow design for that environment.
Terminology Service
Terminology & Code Mapping
Data isn't truly interoperable if codes mean different things across systems. InteropX includes terminology mapping designed around standard healthcare vocabularies.
Lab observations and clinical measurements
Clinical findings, diagnoses, and procedures
Diagnosis coding and billing categorization
Medication concepts and clinical drugs
Terminology Mapping Note: Code mappings and value sets vary across deployments and health systems; in production, terminology translation relies on configured concept maps and client-specified crosswalks rather than a universal dictionary.
Profile Conformance
Strict FHIR Profile Validation
Before data moves downstream, it is checked against applicable FHIR profiles, implementation guides, and structural rules — not just basic JSON syntax.
Resource Structure
Checks that resources follow expected FHIR structure definitions.
Required Elements
Validates that mandatory fields are present and properly formatted.
Cardinality Rules
Enforces 0..1, 1..1, 0..*, and 1..* constraints across resource elements.
Profile Conformance
Checks resources against configured implementation guides and profiles.
FHIR Conformance Note: Validation here is checked against configured, applicable FHIR profiles and implementation guides for a given integration — it is not a claim of universal conformance to every implementation guide that exists, and passing validation does not by itself guarantee full interoperability with every downstream consumer.
Reliability
Event-Driven Delivery & Reliability
Healthcare integrations fail for all kinds of reasons — a destination system is temporarily down, a network call times out, a downstream service is mid-deployment. Asynchronous, queue-based processing is what keeps those failures from becoming data loss.
Message Queues
Asynchronous processing decouples receipt from delivery.
Configurable Retry
Failed deliveries are retried with configurable backoff policies.
Delivery Tracking
Every delivery attempt is logged with status and timing.
Response Monitoring
Destination responses are captured and surfaced for review.
InteropX's delivery layer is built around message queues, configurable retry policies, delivery tracking, and response monitoring, so a failed delivery attempt is retried and tracked rather than silently dropped.
Observability

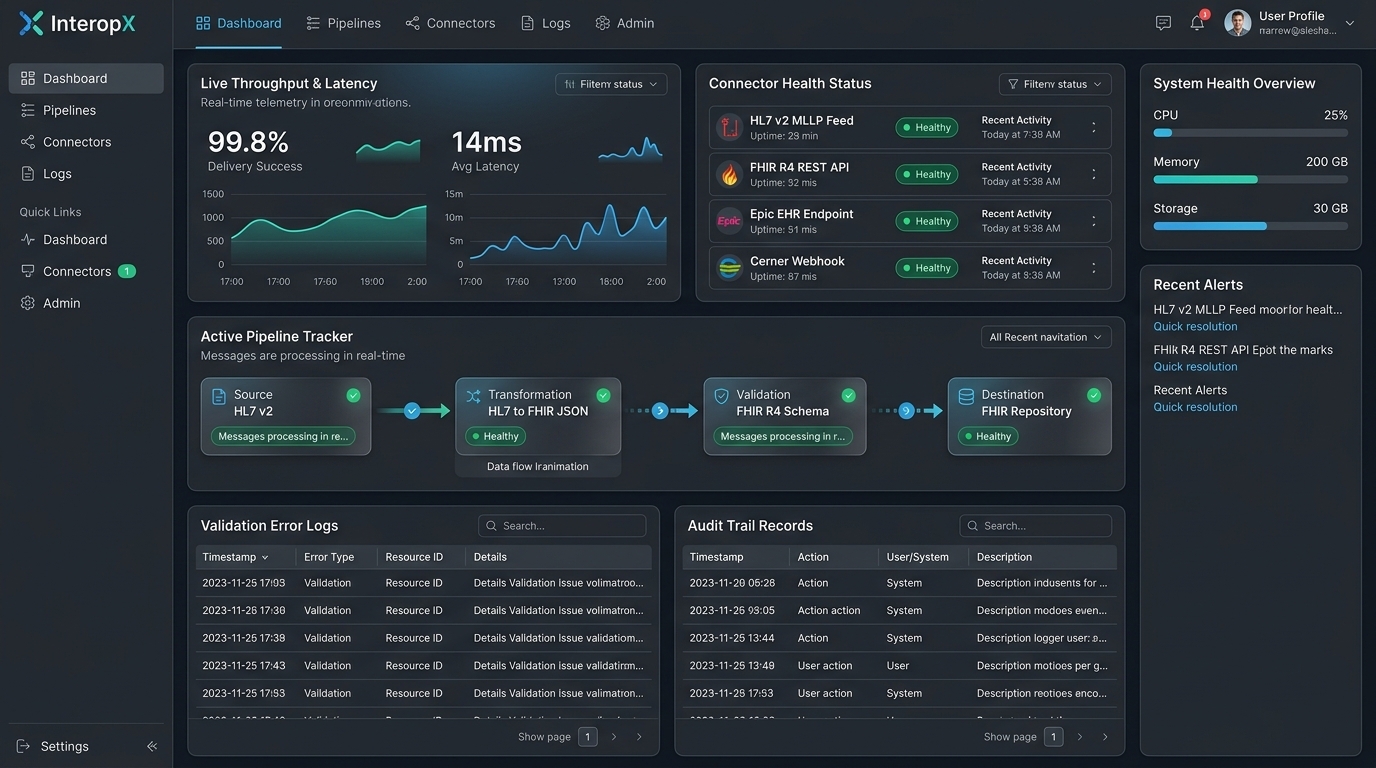

Monitoring & Message Traceability
Every message moving through the pipeline is trackable end to end — from which connector it arrived on to how it was delivered and whether it succeeded.
| Monitoring Area | What It Shows |
|---|---|
| Connector health | Whether each configured source and destination connection is active and reachable |
| Pipeline status | Where a given message currently sits in the processing lifecycle |
| Delivery tracking | Whether a transformed message was successfully delivered to its destination |
| Error monitoring | Validation failures, mapping errors, and delivery failures |
| Retry management | Automatic and manual retry status for failed deliveries |
| Event logs & audit history | A full, traceable record of what happened to a message and when |
| Processing statistics | Volume and outcome trends across connectors and pipelines |
Developer Experience
Developer Experience
Reducing integration friction for engineering teams means giving them real tooling, not just an endpoint list.
Documentation & Access
Interactive API documentation
Swagger / OpenAPI specification
API keys
OAuth configuration
Tooling
SDK and integration examples
Webhook management
Recent message explorer
Architecture Pattern
Transformation Layer, Not System of Record
InteropX is engineered specifically as an agile, stateless-or-buffered transformation and routing layer — not a primary clinical database or EHR replacement.
SOURCE
Clinical Systems
INTEROPX
Transformation / Integration Layer
DESTINATION
EHRs / Data Repositories
Stateless / Buffered
Holds data temporarily to process, validate, and deliver it reliably; it doesn't try to become the permanent store of record.
Audit Trail, Not Primary Record
Maintains detailed logs for troubleshooting, traceability, and compliance, but downstream systems remain the source of truth.
No Dual-Documentation
Clinicians continue working in their primary EHRs and clinical tools; InteropX operates behind the scenes.
Security & Compliance
Security & PHI Protection
TLS in transit & encryption at rest
OAuth 2.0 / secure auth for connectors
Role-based access control
Immutable audit logging
HIPAA note: InteropX is built with a HIPAA-ready architecture, but this is not a claim of HIPAA certification. Production compliance depends on deployment specifics, infrastructure, business associate agreements, organizational policies, access controls, and operational procedures in the final implementation.
Tech Stack
Technology Stack
Frontend
React, TypeScript
Backend
Node.js, Python
Data
PostgreSQL, Redis
Messaging
Kafka / queue-based processing
Cloud
AWS
Interoperability
HL7 v2, FHIR R4, REST APIs, OAuth 2.0
Applications
Where This Engine Can Be Adapted
The patterns behind InteropX can be adapted to a range of healthcare integration scenarios — these are adaptation possibilities based on the engine's architecture, not a list of proven deployments.
EHR integration
Lab integration
Health information exchange
Digital health platform integration
Payer/provider data exchange
Device/IoMT data ingestion
Legacy HL7 modernization
FHIR enablement
Multi-partner integration platforms
What gets customized per engagement
